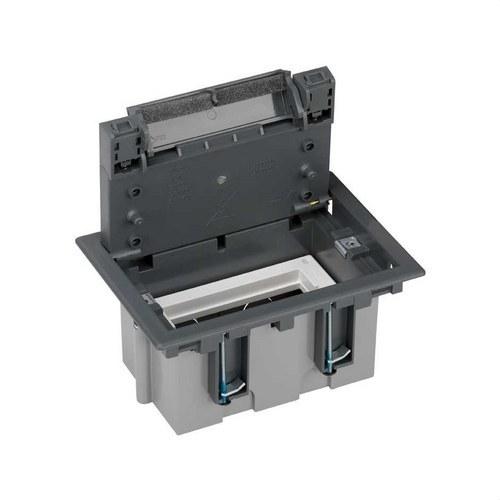

Adjustable Floor Box for 2 Elements in Grey Raised Floor Installation Simon 500 Cima

The adjustable floor box for 2 elements for raised access floor installation from the Simon 500 Cima series is a professional solution designed to integrate electrical and communication connections directly into the floor, keeping the installation protected, accessible, and perfectly integrated into the environment. Its robust design and grey finish make it an ideal choice for offices, technical spaces, meeting rooms, or any installation with raised access flooring.

This box has been specially developed for installation in raised access floors, allowing electrical or voice and data devices to be housed in an organized and secure manner. Its 132 x 187 x 92 mm dimensions and adjustable system allow it to adapt to different installation configurations, providing flexibility and ease during assembly.

It is manufactured with metal components with self-extinguishing, halogen-free thermoplastic insulation, ensuring a high level of safety in the installation. This material prevents flame propagation in case of fire and reduces the emission of toxic fumes, offering greater protection for people and facilities.

The box also stands out for its high mechanical resistance, supporting loads of up to 800 kg and offering excellent protection against impacts, scratches, and demanding usage conditions. In addition, its IP4X protection rating prevents the entry of dust and small objects, thanks also to the inclusion of protective foam.

Once installed and configured, it can optionally be combined with a flush-mount decorative cover (reference 52053101-035) when the same floor covering is not installed, allowing for a uniform and professional appearance.

Main features:

• Series: Simon 500 Cima
• Product type: adjustable floor box
• Capacity: 2 elements
• Finish: grey
• RAL color: 7011
• Material: plastic with metal components and halogen-free thermoplastic insulation
• Dimensions: 132 x 187 x 92 mm
• Depth: 92 mm
• Adjustable depth range: 92 – 120 mm
• Installation opening size: 170 x 115 mm
• Flip cover dimensions: 105 x 161 x 15 mm
• Frame elevation from floor level: 3.2 mm
• Number of side entries: 8
• Pre-drilled holes Ø12.5 mm: 2
• Pre-drilled holes Ø20 mm: 4
• Pre-drilled holes Ø26 mm: 2
• Number of clamp holes: 2
• Number of lid opening positions: 2
• Protection rating: IP4X
• Impact resistance rating: IK08
• Maximum supported load: 800 kg
• Maximum working temperature: +90 ºC
• Heat resistance: +125 ºC (according to IEC 60695-10-2)
• Extinguishing: +850 ºC / 30 s (GWFI according to IEC 60695-2-11)
• Insulation resistance: >5 MΩ at 500 V
• Dielectric strength: no breakdown with 2000 V at 50 Hz for 1 minute
• Installation temperature range: -5 ºC to +60 ºC
• Maximum working temperature: +90 ºC
• Certification: CE

Compatibility:

• Simon 500 Cima mechanisms
• Simon 27 Play mechanisms with specific adapter
• Simon K45 mechanisms with specific adapter

Package contents:

• Floor box
• Metal partition
• Grounding cable
• Screws
• Installation manual

Installation: The system is fixed using clamps on the raised floor tile, included in the set. The metal partition ensures electromagnetic immunity for VDM cabling when installed in the designated compartments. Component removal and frame disassembly can only be performed with tools to guarantee installation safety.

Maintenance: To keep the box in perfect condition, it is recommended to clean with a soft, dry cloth, avoiding abrasive products or cleaners containing chlorine.

This type of solution is very common in offices and professional spaces where connections need to be accessible but perfectly integrated into the floor. With the Simon 500 Cima series, you achieve a robust, safe installation ready for daily use.
