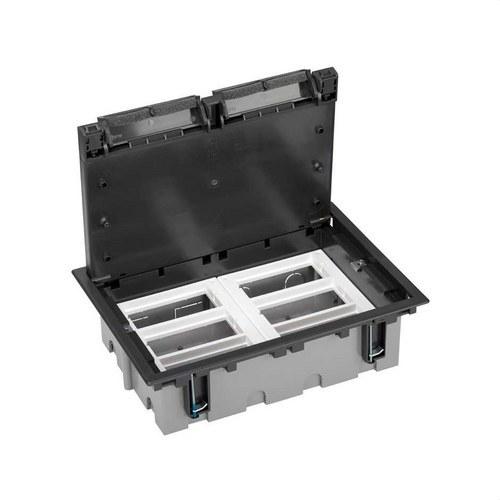

Adjustable Floor Box for 12 Elements in Raised Floor Installation Graphite Simon 500 Cima

The adjustable floor box for 12 elements Simon 500 Cima in graphite finish is designed to provide a complete connectivity solution for raised floor installations, especially in professional environments such as offices, meeting rooms, collaborative workspaces, or commercial facilities where flexible power and data distribution is essential.

Part of the Simon 500 Cima series, this box belongs to a range conceived to maximize connectivity at every workstation, allowing the integration of multiple electrical and communication devices directly into the floor in a safe, organized, and accessible way.

With a capacity for 12 elements and dimensions of 225 x 310 x 92 mm, this box offers ample interior space for device installation, ensuring efficient cable management. Additionally, it features adjustable depth from 92 to 120 mm, making it easy to adapt to different raised floor configurations.

Its structure is made of high-quality metal components and plastic materials that provide excellent mechanical and thermal resistance. It also incorporates self-extinguishing materials that reduce toxicity in case of fire and help prevent the spread of flames, increasing installation safety.

The box includes protective foam that offers protection against dust and small objects, keeping the devices safe in high-traffic environments. It also ensures electromagnetic immunity for VDM wiring through the installation of the included metal partition.

Once configured and installed, it can optionally be combined with the flush decorative cover reference 52053106-038 if the same floor covering is not used, achieving perfect aesthetic integration.

Main features:

• Series: Simon 500 Cima
• Product type: adjustable floor box
• Application: raised floor
• Capacity: 12 elements
• Color / finish: graphite (RAL 7021)
• Dimensions: 225 x 310 x 92 mm
• Adjustable depth: from 92 to 120 mm
• Installation opening size: 210 x 300 mm
• Flap cover dimensions: 200 x 292 x 15 mm
• Frame elevation from floor level: 3.2 mm
• Maximum supported load: 1800 kg
• Protection rating: IP4X
• Impact rating: IK08
• Heat resistance: up to +125 ºC
• Maximum working temperature: +90 ºC
• Insulation resistance: >5 MΩ at 500 V
• Dielectric strength: 2000 V at 50 Hz for 1 minute without breakdown or tracking

Entries and connections:

• 14 side entries for wiring
• 16 holes for clamps
• 4 pre-punched holes Ø12.5 mm
• 5 pre-punched holes Ø20 mm
• 5 pre-punched holes Ø26 mm

Compatibility:

• Simon 500 Cima devices
• Simon 27 Play with specific adapter
• Simon K45 with specific adapter

Package contents:

• Floor box
• Metal partition
• Grounding cable
• Screws
• Installation manual

Installation:

• Specially designed for installation in raised floors
• Fixing with claws on the raised floor tile
• Claw reach: between 14 and 54 mm
• Installation orientation: horizontal or vertical
• Cover with 2 opening positions
• Component removal only with tools
• Frame removal only with tools

Installation conditions:

• Temperature range during installation: -5 to +60 ºC
• Extinction: +850 ºC / 30 seconds (GWFI according to IEC 60695-2-11)

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive cleaners or products containing chlorine

This floor box allows you to organize and distribute power and communications directly from the floor in a safe, durable way, with a discreet aesthetic that integrates perfectly into any professional environment.

It is a highly practical solution for modern offices where each workstation needs quick access to electrical and data connections without compromising the order or aesthetics of the space.
