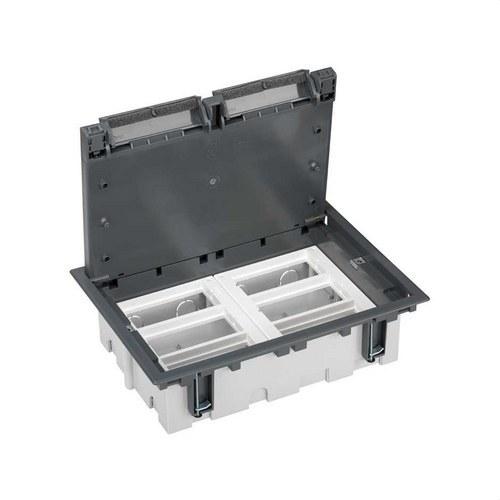

Adjustable Floor Box for 12 Elements in Grey Pavement Floor Installation Simon 500 Cima

The Simon 500 Cima Adjustable Floor Box for 12 Modules is the perfect solution for electrical installations that require high capacity and maximum safety. Designed for flush mounting in solid floors, it is also compatible with raised floors, offering versatility and adaptability for both new construction and renovation projects.

Manufactured with metal components and self-extinguishing, halogen-free thermoplastic insulation, this box ensures high mechanical and thermal resistance, preventing flame propagation and reducing smoke toxicity in case of fire. Its robust design supports loads of up to 1800 kg, making it ideal for high-traffic environments.

Its dimensions are 225 x 310 x 76 mm with an adjustable depth range between 76 and 100 mm. The box is composed of 12 modules to supply power to 12 elements, offering a modular design that allows you to configure the installation according to specific needs.

For a complete installation, it is recommended to combine the box with:

• Simon plastic tray (ref. 52052106-035)
• Optionally, a flush-mount decorative cover (ref. 52053106-035) if not installed on the same floor covering

Technical specifications:

• IK rating: 8
• Number of clamp holes: 16
• Pre-drilled holes: Ø12.5 mm (8), Ø20 mm (4), Ø26 mm (4)
• IP4X protection and dust resistance thanks to protective foam
• Maximum operating temperature: +90º C
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• Insulation resistance: >5 MΩ at 500 V
• Number of side entries: 16
• Opening dimensions: 210 x 300 mm
• Hinged cover dimensions: 200 x 292 x 15 mm

The box allows for the removal and disassembly of components only with tools and is fixed using claws onto the supplied floor tray. Additionally, it offers an adjustable internal free space between 13 and 38 mm, enabling neat cable management.

With this product, Simon guarantees a safe, durable, and professional solution for power distribution in solid floors, featuring an elegant grey finish that combines functionality and aesthetics. Ideal for any project seeking order, safety, and quality in electrical installation.
