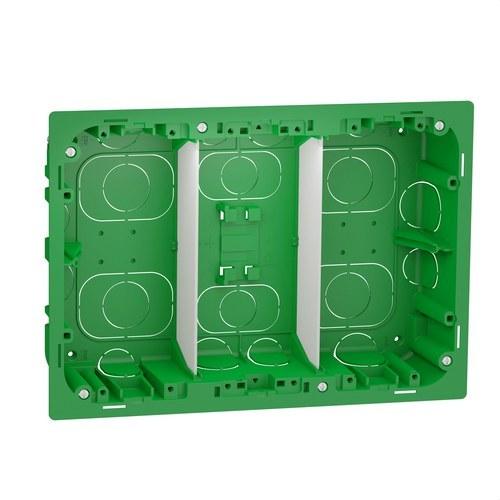

Flush Mounting Box 3 Columns New Unica System+

The Flush Mount Box with 3 Columns from the New Unica System+ range by Schneider Electric, reference NU8734, is a versatile and robust solution for organising and protecting electrical installations in both residential and commercial projects. Designed to facilitate installation and with excellent resistance to impacts and external agents, this box is an ideal choice for ensuring a safe and durable installation.

This box model can accommodate up to 12 modules in a 3x4 configuration, providing ample space for a wide variety of electrical devices, from sockets to switches. The device is securely fixed using a claw system, which facilitates installation and ensures a firm hold on walls and other surfaces, maintaining a completely flush mount.

In terms of resistance, the box has an IK04 protection rating, meaning it is prepared to withstand knocks and other light impacts, providing greater durability and reliability in demanding environments. Additionally, it is made of high-quality materials such as acrylonitrile butadiene styrene (ABS) and polycarbonate (PC), which guarantee a solid structure and resistance to everyday wear.

One of the main features of this mounting box is its design intended to facilitate installation and wiring. It includes multiple cable entries of different sizes and positions:

• 6 knock-outs of 20 mm and 6 knock-outs of 25 mm for easy cable entry on the sides.
• 2 rear entries of 45x25 mm for 20 mm diameter cables.
• 4 rear entries of 50x35 mm for 25 mm diameter cables.

These options allow total flexibility when routing cables, adapting to the needs of any electrical installation.

Technical Features:

• Range: New Unica System+
• Function: Flush Mount Box
• Number of Modules: 3x4 (12 modules)
• Fixing Method: Claws
• Mounting: Flush
• Material: ABS (service earth) and PC (box)
• Fire Resistance: Up to 850 °C with an extinction time of less than 30 seconds
• Dimensions:
  • Height: 156 mm
  • Width: 221 mm
  • Depth: 50 mm
• Product Weight: 0.194 kg
• Impact Protection Rating: IK04

Cable Entries:

• 6 knock-outs of 20 mm and 6 knock-outs of 25 mm
• 2 rear entries of 45x25 mm for 20 mm cables
• 4 rear entries of 50x35 mm for 25 mm cables

Chemical Resistance:

This product has been designed to resist a variety of common chemicals, ensuring its durability in challenging environments. It is resistant to:

• Alcohol (70% and 96%)
• Lactic acid
• Diluted ammonia
• Soapy water
• Glass cleaners
• Hydrogen peroxide (10 volumes)
• Hexane
• Diluted bleach
• Diluted quaternary ammonium

In addition to its chemical resistance, the New Unica System+ mounting box also has high fire resistance, capable of withstanding temperatures up to 850 °C with an extinction time of less than 30 seconds, providing an extra level of safety to the electrical installation.

Additional Benefits:

• Durability: Made with high-quality materials such as ABS and polycarbonate, ensuring a long lifespan and resistance to wear.
• Ease of Installation: Its fixing system with claws and multiple cable entries greatly facilitate the installation process, allowing for quick and easy configuration.
• Safety: With its fire resistance and IK04 impact protection, this mounting box is ideal for keeping electrical installations safe and protected.

The New Unica System+ Flush Mount Box with 3 Columns by Schneider Electric is a reliable and efficient solution for modern electrical installations that demand robustness, safety, and ease of installation.
