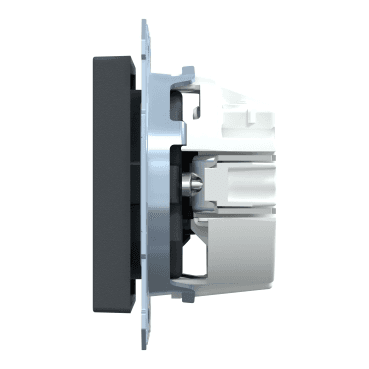

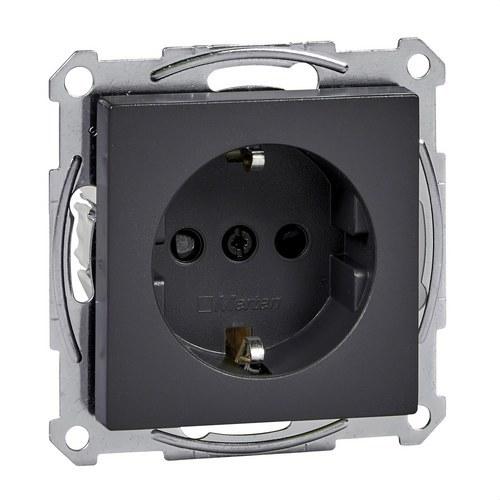

Complete Schuko Socket with Anthracite Mechanism Elegance

The Schneider Electric MTN2300-0414 Schuko socket is a safe and stylish solution for electrical installation in homes and small businesses. This socket is part of the renowned Merten System M range and stands out with its anthracite colour design and matte finish, adding a modern and sophisticated touch to any space. Additionally, it is compatible with the M-Arc, M-Elegance, M-Plan, Crystal M-Plan, M-Smart, and M-Star aesthetic styles, offering multiple combination possibilities to suit different decorative environments.

This socket features a 2P+T pole configuration and a child protection system thanks to an integrated shutter that prevents accidental contact with energised parts, making it a safe option for daily use. Its installation is flush-mounted and secured with screws and claws, ensuring a firm and reliable attachment.

The device is designed to support a nominal current of 16 A and an operating voltage of 250 V, making it suitable for most standard electrical uses in residential settings. The casing is made of thermoplastic polycarbonate, a highly resistant material that guarantees a long service life and excellent reliability in daily use.

In addition to its technical features, this socket is a Green Premium product, meaning it meets stringent environmental standards. It is free of mercury and halogens, contributing to a healthier and more sustainable environment. Its IP20 protection rating makes it suitable for indoor installations, as it provides protection against the entry of medium-sized solid objects.

Technical Specifications:

• Nominal current: 16 A.
• Operating voltage: 250 V (AC).
• Pole configuration: 2P+T (Schuko, CEE 7/3 standard).
• Protection rating: IP20.
• Material: Thermoplastic polycarbonate.
• Colour and finish: Anthracite (RAL 7024), matte surface.
• Mounting: Flush-mounted, secured with screws and claws.
• Dimensions: 71 mm width, 71 mm height, 40 mm depth.
• Applicable standards: DIN 49440.

Additional Advantages:

• Easy installation: Thanks to its screw and claw fixing, the assembly is quick and secure.
• Design versatility: Compatible with multiple decorative styles and over 280 functions within the Merten system.
• Integrated child protection: Safety is a priority with its shutter that prevents accidental contact with energised parts.

The MTN2300-0414 socket not only stands out for its functionality but also for its modern aesthetics and commitment to sustainability, making it an ideal choice for those seeking a balance between design, safety, and performance.
