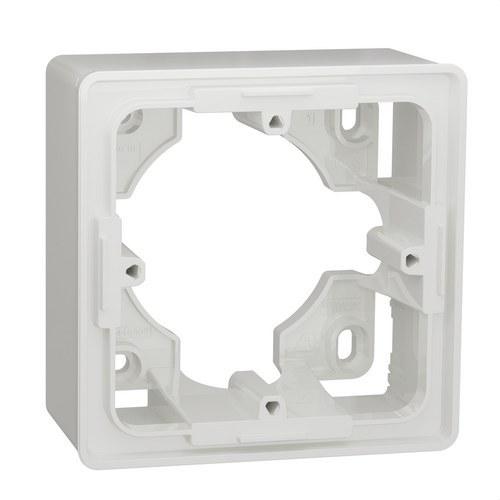

1-Gang Polar White Faceplate New Unica Studio

The 1-Element Schneider Electric New Unica Studio Surface Box in polar white is a modern and functional solution designed to meet the surface mounting needs of electrical mechanisms. This device, part of the Unica Studio aesthetic range, combines durability, safety, and a clean, modern aesthetic, making it ideal for use in residential and commercial environments.

The surface box has compact dimensions of 83 mm in width, 83 mm in height, and 40 mm in depth, which makes it easy to install in almost any space without compromising the appearance of the surroundings. Despite its reduced size, the surface box offers great resistance and stability, with a weight of 0.052 kg that facilitates handling and mounting.

Made of ABS (acrylonitrile butadiene styrene), this material is known for its reliability and resistance to impacts and external factors, ensuring that the surface box will maintain its integrity over time. The device is rated with IK04 protection, meaning it can withstand light impacts, ideal for installation in high-traffic areas where accidental knocks could damage other types of devices.

One of the main advantages of the New Unica Studio Surface Box is that it is halogen-free, making it a safer and healthier option for interiors, as in case of fire, halogen-free materials do not emit toxic or corrosive gases. Additionally, this surface box is designed to be environmentally friendly, as it contains no SVHC (substances of very high concern), making it a more sustainable option.

The surface box is also highly resistant to chemicals and adverse conditions, including acetone, alcohol, ammonia, bleach, liquid soap, oil, petrol, and window cleaner. Additionally, the material is resistant to UV rays, ensuring that the colour and integrity of the device do not deteriorate with prolonged exposure to the sun, making it suitable for both indoor and sun-exposed spaces.

The surface mounting of this surface box is simple and quick, as it features a screw-fixing system that ensures a stable and secure installation. Furthermore, the device is designed to accommodate 1 x 2 modules, offering flexibility in the configuration of mechanisms such as switches or sockets. The design includes 4 knock-outs that allow for easy cable entry, facilitating cable management and organisation.

This surface box complies with international standards IEC 60884-1 and IEC 60669-1, ensuring that it has been manufactured following the strictest quality and safety standards for electrical products. Its reliability is backed by these certifications, ensuring its performance and safety over time.

Highlighted Technical Features:

• Material: Halogen-free and impact-resistant ABS
• Dimensions: 83 mm in width, 83 mm in height, 40 mm in depth
• Weight: 0.052 kg, lightweight and easy to handle
• IK04 Protection: Resistance to light impacts
• Surface Mounting: Screw fixing
• Chemical Resistance: Resistant to a wide range of chemicals such as acetone, alcohol, ammonia, and bleach
• UV Resistance: Protected against discolouration and damage from sun exposure
• Halogen and SVHC Free: Safe for the environment and health
• Standards: Complies with IEC 60884-1 and IEC 60669-1

The 1-Element New Unica Studio Surface Box is an ideal choice for those seeking a reliable, durable, and safe surface mounting solution. Thanks to its compact design, impact resistance, and compatibility with the highest standards, it is a versatile device that adapts to any type of electrical project, ensuring durability and safety in any environment.
