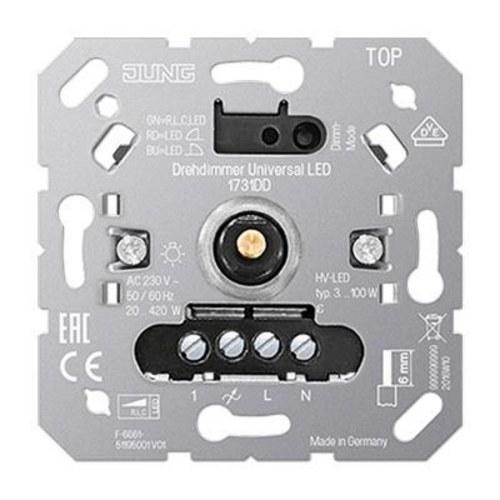

Universal Rotary Dimmer for LED with Auxiliary Input

Universal rotary dimmer for LED incremental and without auxiliary input. It operates on the principle of trailing edge or leading edge phase cut. It has an automatic adjustment of the dimming principle corresponding to the load.

This device can be used without a neutral conductor, with a connection through Softstart, which extends the life of the lamp and connects with the last adjusted brightness or stored connection brightness. The start-up brightness can be continuously stored.

It has permanently storable minimum brightness, electronic short-circuit protection with permanent disconnection at the latest after 7 seconds, and electronic over-temperature protection.

Technical features of the Jung Universal Rotary Dimmer for LED.

• Input voltage: 230 VAC +/- 10%
• Input frequency: 50/60 Hz
• Maximum load current: 2.5 A (for resistive loads) or 1.5 A (for capacitive loads)
• Maximum load power: 500 W (for resistive loads) or 300 W (for capacitive loads)
• Regulation range: 0-100%
• Regulation technology: Trailing Edge
• Control type: Rotary
• Overload and short-circuit protection
• Compatible with a wide range of LED lights, including LED strips and recessed lights
• Memory function to save the last light setting
• Easy installation and connection to existing electrical systems
• Modern and elegant design
