Mitsubishi Electric MSEZ-71VA Ducted Air Conditioner 7.1 kW 24000 BTU

The Mitsubishi Electric MSEZ-71VA ducted air conditioner offers an efficient and quiet climate control solution for homes, offices, or commercial spaces. The set includes the indoor unit SEZ-M71DA2, the outdoor unit SUZ-M71VA, and the wall-mounted controller PAR-40MAA. Its low-profile design and inverter technology ensure optimal performance and discreet integration into the ceiling.

Technical Specifications

• Cooling capacity: 7.1 kW (24,000 BTU)
• Heating capacity: 8.0 kW
• SEER: 6.6
• SCOP: 4.2
• EER: 3.33
• COP: 4.10
• Refrigerant: R32
• Airflow: up to 1200 m³/h
• Indoor unit noise level: 25–36 dB(A)
• Refrigerant connections: 3/8” (Ø9.52 mm) – 5/8” (Ø15.88 mm)
• Power supply: single-phase 230 V / 50 Hz

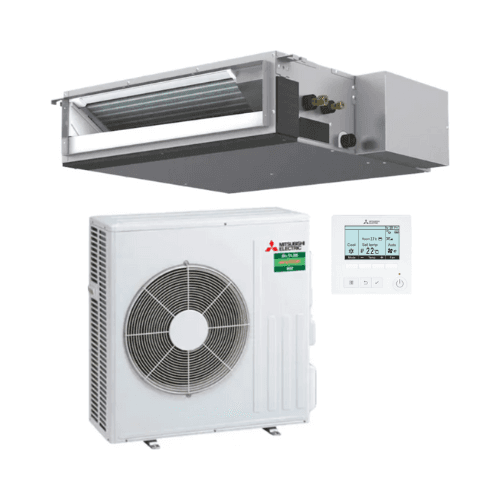

Set Composition

• 1 × Indoor unit SEZ-M71DA2
• 1 × Outdoor unit SUZ-M71VA
• 1 × Control panel PAR-40MAA

Installation and Maintenance

The system is supplied without additional installation materials. Thanks to its reduced height (200 mm) and adjustable pressure fan, the SEZ-M71DA2 unit allows flexible installation in false ceilings or areas with limited space. Front access to the filters makes maintenance and regular cleaning tasks easy.

Dimensions and Weight

• Indoor unit (SEZ-M71DA2): 200 × 1130 × 700 mm – 23 kg
• Outdoor unit (SUZ-M71VA): 880 × 840 × 330 mm – 55 kg

Recommended Applications

Suitable for homes, offices, or commercial spaces between 60 and 80 m² that require uniform and discreet ducted climate control, with advanced wall-mounted control and quiet operation.
